The Gigabit Crossover Adapter converts any standard Ethernet patch cable to a crossover cable for 1000 BASE networks and below. Used with a standard Ethernet patch cable, the Gigabit Crossover Adapter can network two computers in a Gigabit network without requiring a hub. This feature is great for creating a personal network in the office, a. Plug the free ends of the Ethernet cables from each game and MegaTunes unit into a hub. Refer to Figure 6. Linking a Megatouch game and a TouchTunes jukebox: Connect the free end of the Ethernet cable from the game into the crossover coupler. Connect the free end of the TouchTunes jukebox patch cable into the same crossover coupler.

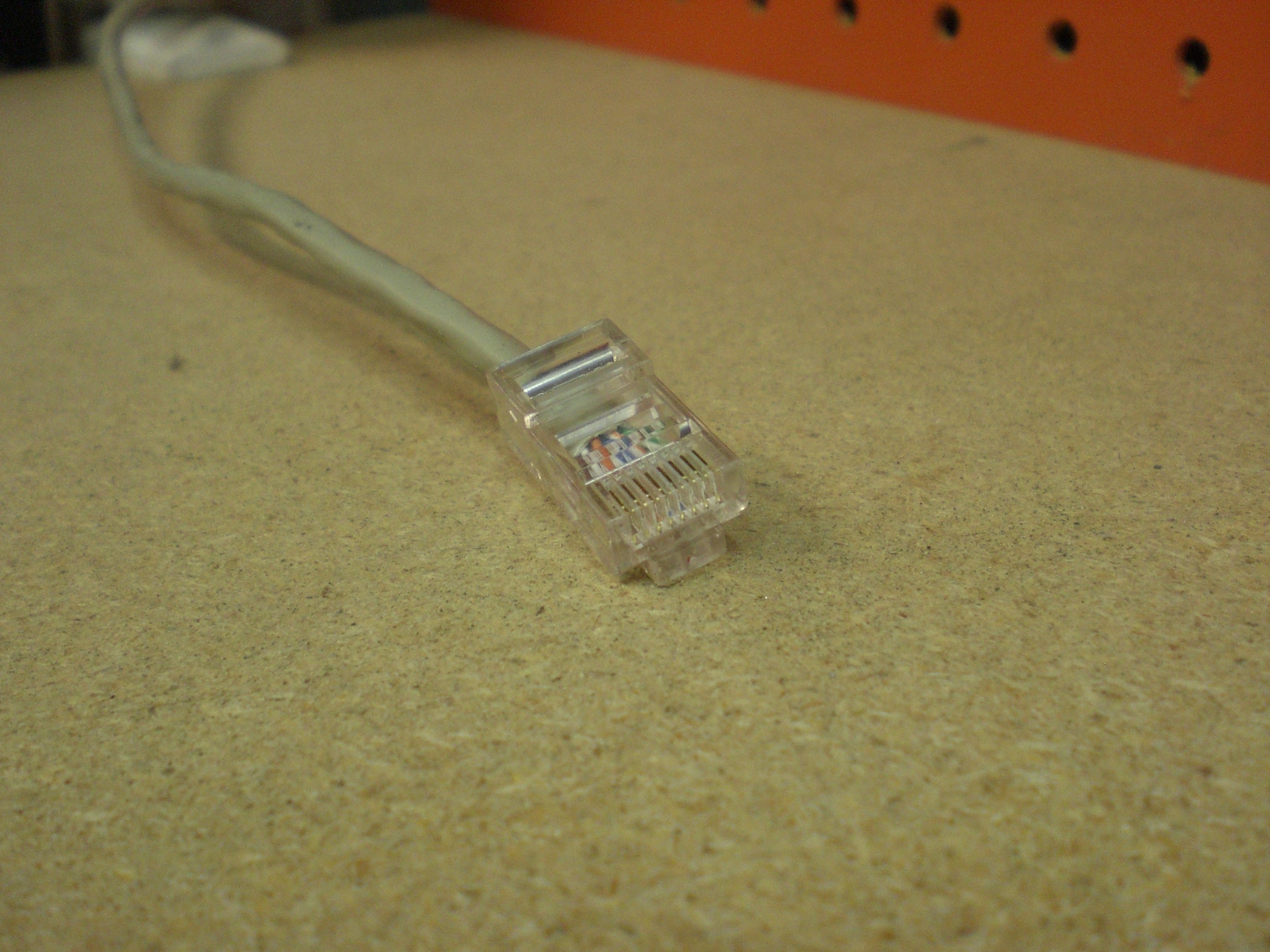

Gigabit Ethernet crossover cable ends

Download Free Patch Cable Crossover Cable Same Software Downloads

An Ethernet crossover cable is a crossover cable for Ethernet used to connect computing devices together directly. It is most often used to connect two devices of the same type, e.g. two computers (via their network interface controllers) or two switches to each other. By contrast, straight throughpatch cables are used to connect devices of different types, such as a computer to a network switch.

Intentionally crossed wiring in the crossover cable connects the transmit signals at one end to the receive signals at the other end.

Many network devices today support auto MDI-X capability, wherein a patch cable can be used in place of a crossover cable, or vice versa, and the receive and transmit signals are reconfigured automatically within the device to yield a working connection.

Motivation[edit]

8P8C modular crossover adapter
Free

The 10BASE-T and 100BASE-TX Ethernet standards use one wire pair for transmission in each direction. This requires that the transmit pair of each device be connected to the receive pair of the device on the other end. The 10BASE-T standard was devised to be used with existing twisted pair cable installations with straight-through connections.

When a terminal device (with an MDI port) is connected to a switch or hub, this crossover is done internally in the switch or hub (MDI-X port). A standard straight-through cable is used for this purpose where each pin of the connector on one end is connected to the corresponding pin on the other connector.

One terminal may be connected directly to another without the use of a switch or hub, but in that case, the crossover must be done in the cabling. Since 10BASE-T and 100BASE-TX use pairs 2 and 3, these two pairs must be swapped in the cable. This wiring scheme constitutes a crossover cable. A crossover cable may also be used to connect two hubs or two switches on their upstream ports.

Because the only difference between the T568A and T568B pin and pair assignments are that pairs 2 and 3 are swapped, a crossover cable may be envisioned as a cable with one modular connector following T568A and the other T568B (see TIA/EIA-568 wiring). Such a cable will work for 10BASE-T or 100BASE-TX.

The polarity of each pair is not swapped, but the pairs crossed as a unit: the two wires within each pair are not crossed.[1]

Download Free Patch Cable Crossover Cable Same Software
Cable requirement for Ethernet link
To
MDIMDI-XAuto MDI-X
MDIcrossoverstraightany
MDI-Xstraightcrossoverany
Auto MDI-Xanyanyany

Automatic crossover[edit]

Introduced in 1998, this made the distinction between uplink and normal ports and manual selector switches on older hubs and switches obsolete.[2] If one or both of two connected devices has the automatic MDI/MDI-X configuration feature, there is no need for crossover cables.

Although Auto MDI-X was specified as an optional feature in the 1000BASE-T standard,[3] in practice it is implemented widely on most interfaces.

Besides the eventually agreed upon Automatic MDI/MDI-X, this feature may also be referred to by various vendor-specific terms including: Auto uplink and trade, Universal Cable Recognition and Auto Sensing.

1000BASE-T and faster[edit]

In a departure from both 10BASE-T and 100BASE-TX, 1000BASE-T and faster use all four cable pairs for simultaneous transmission in both directions through the use of telephone hybrid-like signal handling. For this reason, there are no dedicated transmit and receive pairs. 1000BASE-T and faster require either a straight or one of the crossover variants only for the autonegotiation phase. The physical medium attachment (PMA) sublayer provides identification of each pair and usually continues to work even over cable where the pairs are unusually swapped or crossed.[4]

Fiber[edit]

For most optical fiber variants of Ethernet, fibers are used in pairs with one fiber for each direction. The transmitter on one end of the connection needs to be connected to the receiver on the other and vice versa. For this, fiber patch cables with duplex connectors are normally configured as crossover as is the on-premises wiring.[citation needed] Thus, a simple connection with two patch cables at each end and a section of fixed cable in the middle has three crossovers in total, resulting in a working connection. Patch cable crossovers can usually be reconfigured very easily by swapping the connectors within a duplex bracket if required.

Pinouts[edit]

In practice, it does not matter if non-crossover Ethernet cables are wired as T568A or T568B, just so long as both ends follow the same wiring format. Typical commercially available 'pre-wired' cables can follow either format depending on the manufacturer. What this means is that one manufacturer's cables are wired one way and another's the other way, yet both are correct and will work. In either case, T568A or T568B, a normal (un-crossed) cable will have both ends wired identically according to the layout in either the Connection 1 column or the Connection 2 column.

Half crossed[edit]

Crossover cable connecting two MDI ports

Certain equipment or installations, including those in which phone and/or power are mixed with data in the same cable, may require that the 'non-data' pairs 1 and 4 (pins 4, 5, 7 and 8) remain un-crossed. This is the most common kind of crossover cable.

Two pairs crossed, two pairs uncrossed 10BASE-T or 100BASE-TX crossover[5]
PinConnection 1: T568A
Connection 2: T568B
Pins on plug face
signalpaircolorsignalpaircolor
1BI_DA+3
white/green stripe
BI_DB+2
white/orange stripe
2BI_DA-3
green solid
BI_DB-2
orange solid
3BI_DB+2
white/orange stripe
BI_DA+3
white/green stripe
41
blue solid
1
blue solid
51
white/blue stripe
1
white/blue stripe
6BI_DB-2
orange solid
BI_DA-3
green solid
74
white/brown stripe
4
white/brown stripe
84
brown solid
4
brown solid

Fully crossed[edit]

All pairs crossed
While this is the only crossover for 1G, it also works for 10M and 100M ethernet
PinTIA/EIA 568-ATIA/EIA 568-B
NormalCrossoverNormalCrossover
1
white/green stripe

white/orange stripe

white/orange stripe

white/green stripe
2
green solid

orange solid

orange solid

green solid
3
white/orange stripe

white/green stripe

white/green stripe

white/orange stripe
4
blue solid

white/brown stripe

blue solid

white/brown stripe
5
white/blue stripe

brown solid

white/blue stripe

brown solid
6
orange solid

green solid

green solid

orange solid
7
white/brown stripe

blue solid

white/brown stripe

blue solid
8
brown solid

white/blue stripe

brown solid

white/blue stripe
